H-Quality As mangas de alumínio H-Q são fabricadas de acordo com EN13411-3 (DIN 3093) de #1 a #60. Para segurança na fabricação e aplicação, nossas ponteiras são feitas de material estritamente correspondente aos requisitos da EN 13411-3 (DIN 3093) quanto à

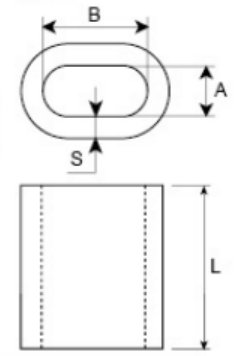

Item No. | Código Da Manga | A (mm) | B (mm) | S (mm) | L (mm) | PESO Kgs/1000Pcs | L'(mm) GB 6946-93 |
SL990010 | 1 | 1.2 | 2.4 | 0.65 | 5 | 0.098 | - |
SL990015 | 1.5 | 1.7 | 3.4 | 0.75 | 6 | 0.176 | - |
SL990020 | 2 | 2.2 | 4.4 | 0.85 | 7 | 0.285 | - |
SL990025 | 2.5 | 2.7 | 5.4 | 1.05 | 9 | 0.439 | - |
SL990030 | 3 | 3.3 | 6.6 | 1.25 | 11 | 0.907 | - |
SL990035 | 3.5 | 3.8 | 7.6 | 1.5 | 13 | 1.18 | - |
SL990040 | 4 | 4.4 | 8.8 | 17 | 14 | 1.63 | - |
SL990045 | 4.5 | 4.9 | 9.8 | 1.9 | 16 | 2.39 | - |
SL990050 | 5 | 5.5 | 11.0 | 2.1 | 18 | 3.62 | - |
SL990060 | 6 | 6.6 | 13.2 | 2.5 | 21 | 5.87 | 25 |
SL990065 | 6.5 | 7.2 | 14.4 | 2.7 | 23 | 7.18 | - |
SL990070 | 7 | 7.8 | 15.6 | 2.9 | 25 | 9.83 | 30 |
SL990080 | 8 | 8.8 | 17.6 | 3.3 | 28 | 12.96 | 34 |
SL990090 | 9 | 9.9 | 19.8 | 3.7 | 32 | 18.94 | 38 |
SL990100 | 10 | 10.9 | 21.8 | 4.1 | 35 | 24.09 | 42 |
SL990110 | 11 | 12.1 | 24.2 | 4.5 | 39 | 35.35 | 47 |
SL990120 | 12 | 13.2 | 26.4 | 4.9 | 42 | 44.18 | 50 |
SL990130 | 13 | 14.2 | 28.4 | 5.4 | 46 | 59.86 | 55 |
SL990140 | 14 | 15.3 | 30.6 | 5.8 | 49 | 73.5 | 59 |
SL990160 | 16 | 17.5 | 35.0 | 6.7 | 56 | 111 | 67 |
SL990180 | 18 | 19.6 | 39.2 | 7.6 | 63 | 156 | 76 |
SL990200 | 20 | 21.7 | 43.4 | 8.4 | 70 | 217 | 84 |
SL990220 | 22 | 24.3 | 48.6 | 9.2 | 77 | 292 | 92 |
SL990240 | 24 | 26.4 | 52.8 | 10.0 | 84 | 376 | 101 |
SL990260 | 26 | 28.5 | 57.0 | 10.9 | 91 | 481 | 109 |
SL990280 | 28 | 31.0 | 62.0 | 11.7 | 98 | 603 | 118 |
SL990300 | 30 | 33.1 | 66.2 | 12.5 | 105 | 739 | 126 |
SL990320 | 32 | 35.2 | 70.4 | 13.4 | 112 | 897 | 134 |
SL990340 | 34 | 37.8 | 75.6 | 14.2 | 119 | 1077 | 143 |
SL990360 | 36 | 39.8 | 79.6 | 15.0 | 126 | 1275 | 152 |
SL990380 | 38 | 41.9 | 83.8 | 15.8 | 133 | 1503 | 160 |
SL990400 | 40 | 44.0 | 88.0 | 16.6 | 140 | 1734 | 168 |
SL990420 | 42 | 46.2 | 92.4 | 17.5 | 147 | 2024 | - |
SL990440 | 44 | 48.4 | 96.8 | 18.3 | 154 | 2314 | 184 |
SL990460 | 46 | 50.6 | 101.2 | 19.2 | 161 | 2662 | - |
SL990480 | 48 | 52.8 | 105.6 | 20.0 | 168 | 3010 | 200 |
SL990500 | 50 | 55.0 | 110.0 | 20.8 | 175 | 3412 | - |
SL990520 | 52 | 57.2 | 114.4 | 21.6 | 182 | 3813 | 216 |
SL990540 | 54 | 59.4 | 118.8 | 22.5 | 189 | 4293 | - |
SL990560 | 56 | 61.6 | 123.2 | 23.3 | 196 | 4772 | 232 |
SL990580 | 58 | 63.8 | 127.6 | 24.2 | 203 | 5326 | - |
SL990600 | 60 | 66.0 | 132.0 | 25.0 | 210 | 5880 | 248 |
